Re: Everything You'd want to know about Porting on a Rotary

#241 Post by brown hornet » Tue May 07, 2013 9:03 pm

so i got soem pineapple racing "race extend port templates'

overlayed them on my own backyard extend port which was purely based on seal traces and what i thought was a good shaped port..

very surprised that there is next to no difference in the width and the top shape.. only the bottom section is extended lower which i didn't do...
obviously the pineapple port is widened exactly the same as what i decided on which i think was 2mm.

pic of overlay..
pineapple race extend comparison 2.jpg


My RX7's - ..
The new one - not so stock anymore S3 - http://ausrotary.com/viewtopic.php?f=21&t=223532" onclick="window.open(this.href);return false;
The old one - DIY 13b 6 port turbo - http://ausrotary.com/viewtopic.php?f=21 ... &start=100" onclick="window.open(this.href);return false;

User avatar
drtool
Rebuild Time
Posts: 1026
Joined: Fri Jul 10, 2009 9:37 pm
Location: France (ex UK & NZ)
Has liked: 0
Been liked: 0

Re: Everything You'd want to know about Porting on a Rotary

#242 Post by drtool » Sat Nov 23, 2013 9:20 am

.


1971 RX2 coupe 12A TD
1971 RX2 coupe 13B BP
1995 20B Cosmo Type SX

Trader feedback here: http://ausrotary.com/viewtopic.php?f=14 ... 2#p2707662" onclick="window.open(this.href);return false;

BloodyKiwi
Registered Rotor User
Posts: 1
Joined: Fri Jun 27, 2014 11:49 am
Has liked: 0
Been liked: 0

Re: Everything You'd want to know about Porting on a Rotary

#243 Post by BloodyKiwi » Tue Mar 03, 2015 8:44 pm

Any info on 6 ports? I have one I want to tickle but not finding much info on these. :stupid:



User avatar
RX7_BEN
Rotor Junkie
Posts: 5561
Joined: Sat Dec 04, 2004 11:16 am
Location: Geelong
Has liked: 0
Been liked: 0

Re: Everything You'd want to know about Porting on a Rotary

#244 Post by RX7_BEN » Tue Jun 27, 2017 9:13 pm

Hey guys, got some questions about exhaust porting for a turbo application

I'm building a 12a turbo motor at the moment using all n/a parts. The engine was initially built as a naturally aspirated extend port, so the exhaust port has been ported upwards as is commonplace for such engines. It's a typical round port with slightly squared bottom, but I'm thinking about making a few changes, mainly because I'd like the engine to come on boost a little quicker and figure while it's apart I may as well attack it.

If I understand correctly, exhaust ports for turbo engines these days are squared off and ported down (earlier port open time) in order to maximise port area whilst minimising overlap.

What I've been thinking is that I'd like to widen my existing ports a little, squaring them off and opening them earlier by porting downward. Is this going to be feasible with my already later closing ports?
I'm also limited by the rather small 12a n/a exhaust port baffles, so not a huge amount of material is going to be removed.

Pic of current ports

As a side note, this is the inlet port I'm working with. The scribe mark indicates the shape I'm considering changing it to.

I've been running the engine for a few years on 14psi with a T04z 1.0 split pulse rear and it doesn't make full boost until around 6000rpm.
Any thoughts on these proposed changes would be great!

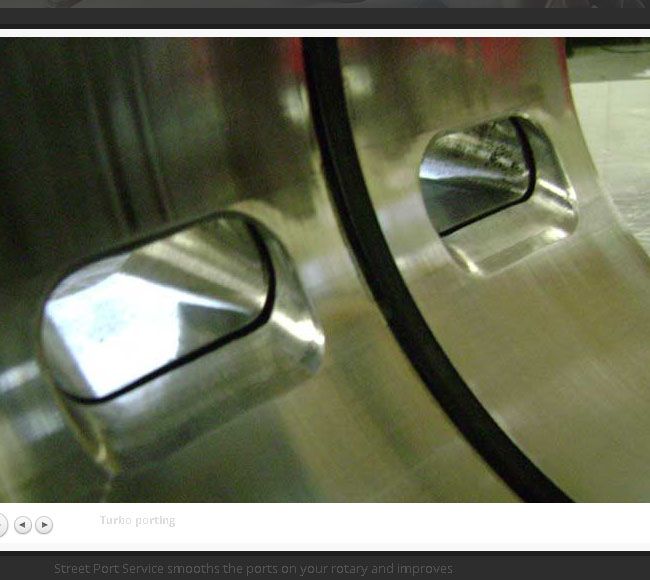

Edit: Oh, here's a bit of an example of the modern age turbo type ports I'm talking about. This is on a 13b by Defined Autoworks, so won't be that large, but along those lines.
